UNIVERSAL HARDNESS TESTERS
Universal hardness testers provide a comprehensive solution for material hardness testing, enabling users to perform Rockwell, Vickers, and Brinell tests in compliance with ISO, ASTM, and JIS standards using a single instrument. These hybrid systems do not convert hardness values between scales; instead, they execute each test according to the specific procedures defined for that scale. This eliminates the need for multiple dedicated testers and associated setup changes, resulting in significant cost savings and increased efficiency. Contemporary universal hardness testers utilize advanced load cell technology and closed-loop force feedback systems, replacing the complex mechanical structures and weight stacks of traditional models with more precise and user-friendly designs.
Universal Hardness Tester Product Lineup:
- NEXUS 7700G2: This model is engineered for heavy-duty testing, providing consistent and reliable results on large components and materials with coarse grain structures.
- NEMESIS 5100G2: Combining advanced technological features with intuitive operation, this model is ideally suited for high throughput testing environments.
- NEMESIS 9100G2: This high-end instrument offers exceptional precision and a wide range of selectable test loads to accommodate diverse testing requirements.
- NEXUS 8100/8100XL: These versatile models are designed to cover a broad spectrum of hardness testing applications, offering flexibility and adaptability.
- NEMESIS 9600G2: These high-performance instruments are engineered for the most demanding applications, ensuring durability, accuracy, and consistent performance under challenging conditions.
- NEMESIS 9800G2: These state-of-the-art machines represent the pinnacle of universal hardness testing technology, providing unparalleled precision, reliability, and advanced functionality.
Manufacturer’s website: http://www.innovatest-europe.com
Universal Hardness Tester Products
NEMESIS

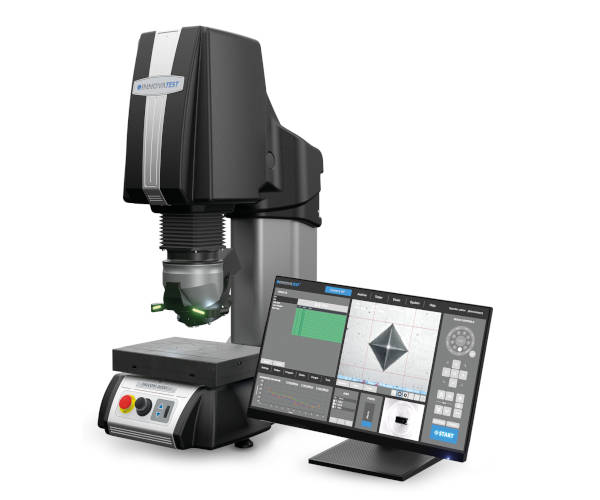

NEMESIS 5100G2
10gf – 250 | 750 | 3000kgf
Descending test head
Micro Vickers, Vickers, Knoop, Brinell
Rockwell, Superficial Rockwell
Load cell, Closed loop system
9 positions tool changer
IMPRESSIONS™ 4 work flow system
METALLOSCOPE™ software option Artificial Intelligence software module
1 x 27″ or 2 x 24″ touchscreen(s)
Full test head collision prevention & detection system
Micro Vickers, Vickers, Knoop, Brinell
Rockwell, Superficial Rockwell
Load cell, Closed loop system
9 positions tool changer
IMPRESSIONS™ 4 work flow system
METALLOSCOPE™ software option Artificial Intelligence software module
1 x 27″ or 2 x 24″ touchscreen(s)
Full test head collision prevention & detection system

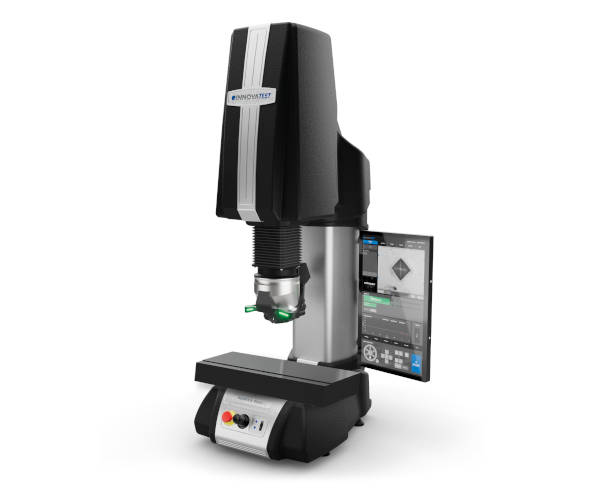

NEMESIS 9100G2
200gf – 3000kgf
Descending test head
Micro Vickers, Vickers, Knoop, Brinell
Rockwell, Superficial Rockwell
Load cell, Closed loop system
9 positions tool changer
IMPRESSIONS™ 4 work flow system
METALLOSCOPE™ software option
Artificial Intelligence software module
1×27″ touchscreen
Full test head collision prevention & detection system
Micro Vickers, Vickers, Knoop, Brinell
Rockwell, Superficial Rockwell
Load cell, Closed loop system
9 positions tool changer
IMPRESSIONS™ 4 work flow system
METALLOSCOPE™ software option
Artificial Intelligence software module
1×27″ touchscreen
Full test head collision prevention & detection system

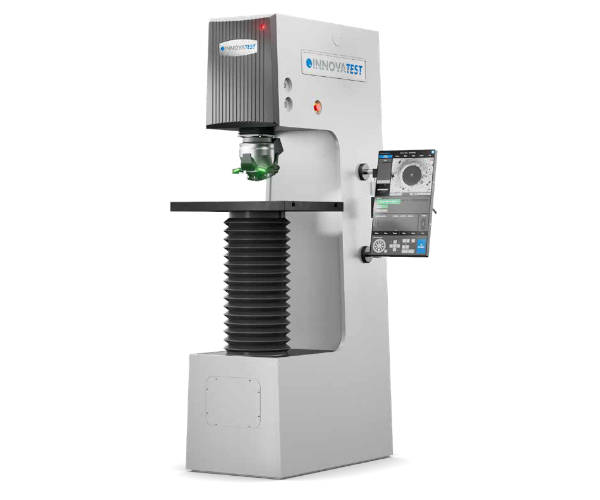

NEMESIS 9600G2
200gf – 3000kgf
Rockwell, Superficial Rockwell,
Brinell, Vickers, Knoop, HVT & HBT,
Plastic ISO 2039/1, Carbon
with IMPRESSIONS™ system.
