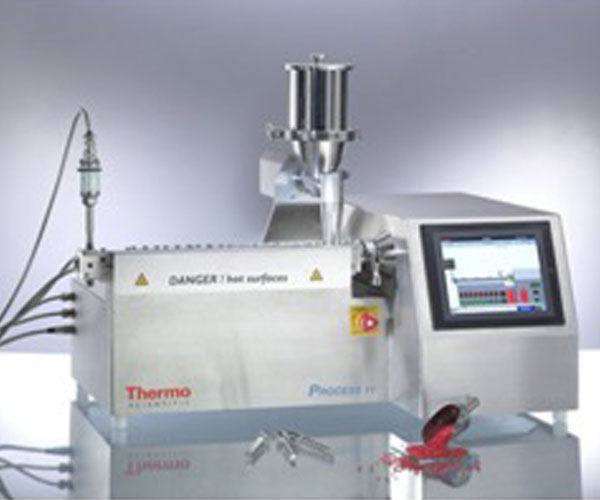

Process 11 Parallel Twin-Screw Extruder
Optimize your time and money spent developing formulations for polymer and food products with the Thermo ScientificTM Process 11 Parallel Twin-Screw Extruder.
Need just a small amount of material to conduct experiments, this parallel co-rotating twin screw extruder lets you to conduct numerous trials efficiently and cost effectively. It is designed to meet the key challenges faced by R & D formulation scientists.
The Process 11 extruder is also available in a hygienic model which includes stainless steel / pharma-grade steel product-contact-parts. The hygienic model is recommended when developing materials such as HMMA (high-moisture meat analogues) and TVP (texturized vegetable protein) applications.
REQUEST A QUOTE / ENQUIRY FORM
SPECIFICATIONS
VIDEO 1
VIDEO 2
VIDEO 3
SPECIFICATIONS
| Barrel diameter | 11 mm |
| Barrel length | 40 L/D |
| Barrel material | Nitriding steel 1.7365 (EN40B) |
| Screw speed | 10…1000 rpm |
| Torque per shaft | 6 Nm, constant torque, safety monitored. |
| Pressure | 100 bar, safety monitored |
| Temperature | RT…350°C (optional 450°C) |
| Feed zone | Permanently water cooled |
| Heating zones | 7 x 5 L/D electrical heated (optional water cooled) |
| Dimensions | 820 x 480 x 410 mm (L x W x H) |
| Weight | 55 kg |
| Power supply | 230 V, 16 A, 50/60 Hz |
