Leica - Flexacam c5 & i5
Microscope Cameras

Leica Flexacam microscope cameras provide precise colors, high resolution, and flexible viewing, documentation, and sharing of microscope images. The Enersight software platform offers an easy-to-use and consistent interface.
ENQUIRY FORM
REQUEST A QUOTE / ENQUIRY FORM
RFQ
leica-flexacam-c5-i5

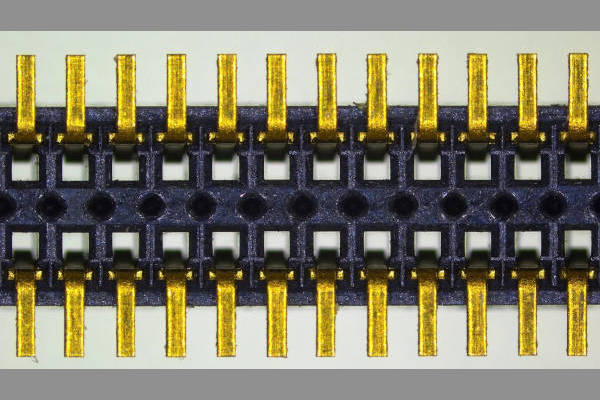

Electronic component. Image taken with Flexacam microscope camera.

See color-precise, crisp images

Acquire sharp images with precise colors for applications such quality control, material sciences, and life sciences.
Fast viewing of sample details directly on a monitor.

Get the details fast

  • Reveal fine details of your sample and capture images in high resolution thanks to the 12-megapixel CMOS sensor.
  • Differentiate details quickly and clearly due to the fast auto exposure – even when switching between bright and dark samples.
  • Visualize sample movements clearly and smoothly on the monitor, facilitated by the high frame rate of up to 60 fps.

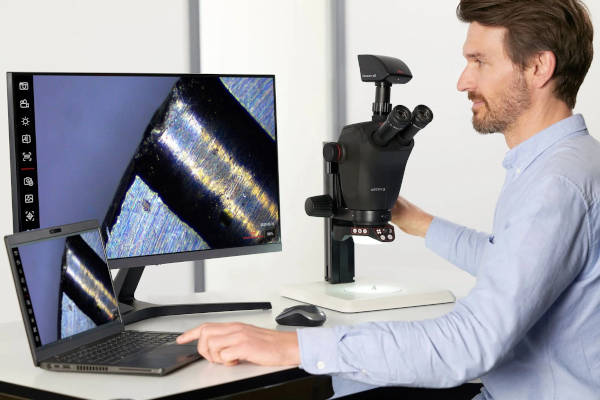

You can work in stand-alone mode or with a laptop using a Flexacam camera and the Enersight software. The example above shows the Flexacam c5 camera installed on an Ivesta 3 stereo microscope.

Work the way you want to

Flexacam microscope cameras are powered by the Enersight software platform. This allows you to work your way – whatever fits you best.

Choose your preferred operation mode
  • Stand-alone mode without a PC, directly connected to a monitor for on-screen display (OSD)
  • Tablet or smartphone using the Enersight Mobile app
  • PC or laptop using the Enersight Desktop app

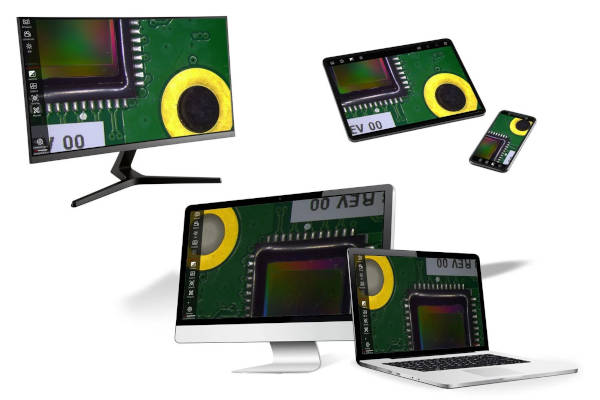

The Enersight interface can be used in multiple operation modes, such as on-screen display, mobile devices, or computer.

Take advantage of a consistent operation

Powered by Enersight software platform:
  • Inspect, compare, measure, and share seamlessly on a single intuitive interface, regardless of how or where you do it.
  • Reduce the need for training and supervision and make decisions as a team more easily.

Select the appropriate camera for your microscope

You can choose from two Flexacam cameras:
  • The Flexacam c5, for C-mount installation on a stereo or compound microscope
  • The Flexacam i5, for installation between the optics carrier and binocular tube of a stereo or compound microscope

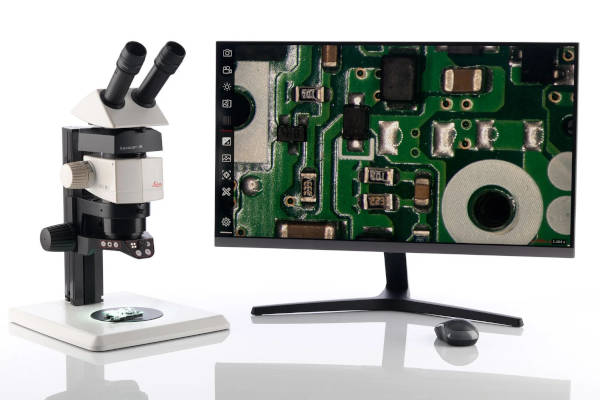

C-mount installation on a stereo or compound microscope

With a M60 stereo microscope and DM2700 M upright materials microscope.

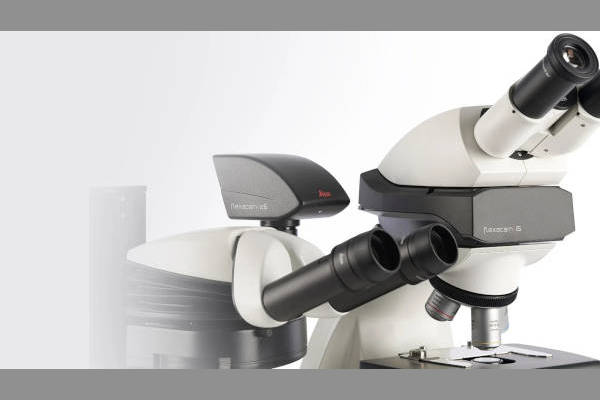

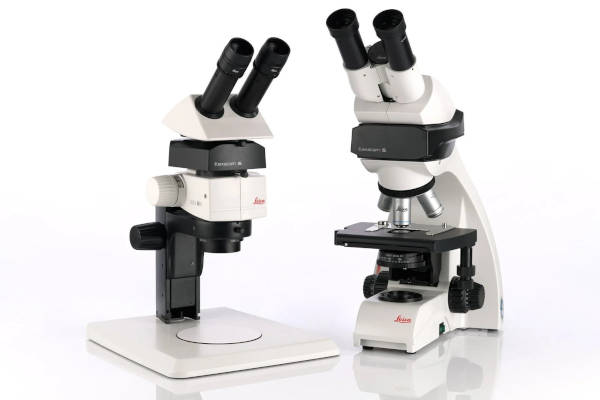

Installation between the optics carrier and binocular tube

With a M60 stereo microscope and DM500 compound microscope.

TECHNICAL SPECIFICATIONS

Weight (camera only) Flexaxam i5 (Stereo): 0.55 kg Flexaxam i5 (Compound): 0.75 kg Flexacam c5: 0.4 kg
Live image on an HDMI monitor up to 60 fps(3,840 x 2,160 pixels)
Full-screen image capture at 12 MP
Sensor diagonal 7.81 mm (type 1/2.3″ CMOS)
Pixel size 1.55 μm x 1.55 μm
Input 5 V DC / 3 A
Power consumption 15 W
Supported software Enersight (OSD, Mobile, Desktop)
Color filter IR-cut coating 650 nm, not replaceable
File formats JPG, TIF, BMP, MJPG; for overlays also PNG
Compatibility USB 3.0, standard USB type C
High-definition connector HDMI 2.0a, HDMI plug type A
USB connectors Flexacam i5 (Stereo): 4x USB 2 connectors, type BFlexacam i5 (Compound): 2x USB 2 connectors, type BFlexacam c5: 4x USB 2 connectors, type B
ON / OFF button 1x (on rear side of the camera)
Multicolor status LED 1x (on rear side of the camera)
Operating temperature 10 °C to 40 °C (50 °F to 104 °F)
