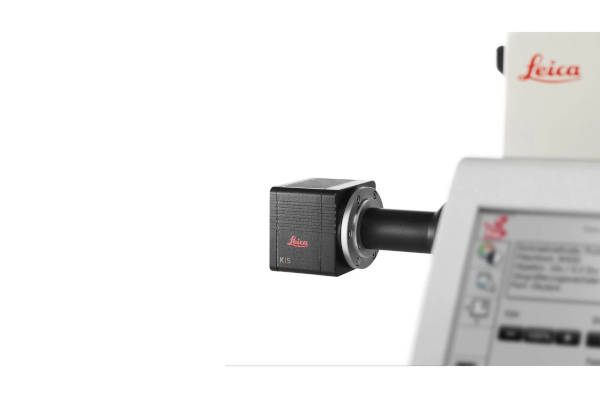

Leica - K5
sCMOS Microscope Camera
The Leica K5 microscope camera is ideal for routine fluorescence imaging applications such as immunostaining assays and 3D Cell Culture imaging.
Image a wide variety of sample types with the flexibility and power of high 4.2 megapixel resolution and fast 40 fps imaging brought to you by the K5.
Image a wide variety of sample types with the flexibility and power of high 4.2 megapixel resolution and fast 40 fps imaging brought to you by the K5.
Your benefits
- Bring the flexibility and power of sCMOS technology into your lab and image the details of your experiment
- Efficiently segment crucial real time events
- Improve signal-to-background of your THUNDER Imager
REQUEST A QUOTE / ENQUIRY FORM
Flexibility of imaging applications
To achieve the best imaging conditions, you can adjust the K5 camera flexible parameters to meet your sample needs:
- Image dynamic cellular events with up to 40 fps imaging
- Resolve detailed structures thanks to high 4.2 MP resolution
- Reduce exposure times and phototoxic effects with high 80% quantum efficiency.
Efficiently segment real time events
Get more biologically-relevant information with time lapse imaging thanks to the increased throughput powered by up to 40 fps observations.
Imaging cellular motility and protein dynamics in live cells requires high QE and fast frame rates. The K5‘s features make it an incredible camera for routine live cell imaging.
Imaging cellular motility and protein dynamics in live cells requires high QE and fast frame rates. The K5‘s features make it an incredible camera for routine live cell imaging.
Improve your images with better signal-to-background
Combine the K5’s flexibility with the power of Computational Clearing.
Remove the haze from conventional widefield images accurately thanks to validated K5 and THUNDER Imager workflows.
Remove the haze from conventional widefield images accurately thanks to validated K5 and THUNDER Imager workflows.
TECHNICAL SPECIFICATIONS
| Detector type | sCMOS |
| Quantum Efficiency | ~80% @ 600 nm |
| Speed (full resolution) | 40 fps |
| Dynamic Range | 21400:1 up to 87 dB |
| Resolution | 2048 x 2048 |
| Pixel size | 6.5 μm x 6.5 μm |
| Trigger type | SMA Connections |
| Data interface | USB 3.1 |
| Non-linearity | <0.6 % |
| Cooling | Passive |
| Read noise | 2.1 e- (median) / 2.3 e- (rms) |
| Dark current | 15 e-/px/sec |
| Sensor size (diagonal) | 18.8 mm |
| Shutter mode | Rolling |
| Fullwell capacity | 45000 e- |
| MTF | 76.9 lp/mm |
| Power consumption | 4.5 W |
| Weight | 420 g |
| Operating Temperature | 10 °C - 40 °C |
| Operable humidity range | 10 % - 80 % (non-condensing) |
| Optical interface | C-mount |
| CE/FCC Certification | Yes |
