Phenom Perception GSR Desktop SEM

SEM EDX gunshot residue analysis with desktop SEM

The Phenom Perception GSR desktop SEM simplifies forensic gunshot residue (GSR) analysis through its fully automated system. This unique solution integrates user-friendly Phenom XL SEM hardware with dedicated GSR analysis and classification software, along with precise elemental identification via EDS. Automating the detection and analysis of GSR particles, including traditional (Pb, Sb, Ba) and lead-free (Ti, Zn) primers, the system dramatically increases efficiency. Its intuitive software provides comprehensive reporting, complies with ASTM E1588 and ENFSI standards, and allows for easy review of stored SEM images and EDS data, enhancing reliability and user experience.
Data Sheet
Brochure
ENQUIRY FORM
REQUEST A QUOTE / ENQUIRY FORM
RFQ

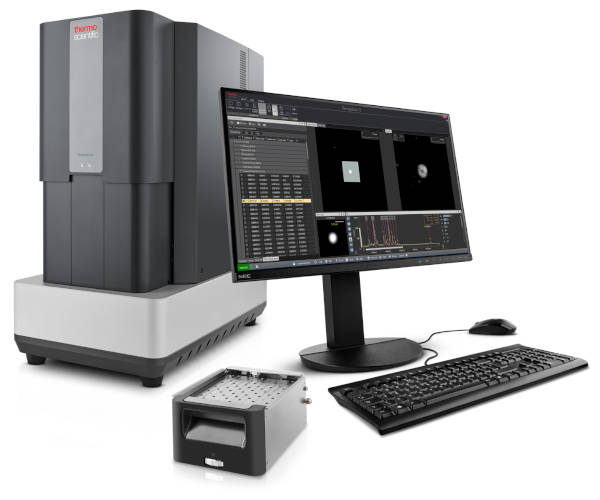

phenom-perception-gsr-desktop-sem
gunshot-residue-gsr-1

Features

High throughput, reliable results

The Phenom Perception GSR’s motorized stage supports a 100mm x 100mm scan area and, through internal scan control, delivers precise beam positioning for accurate GSR particle verification. Its sample holder can accommodate 30 12mm pin stubs plus calibration samples.

All in one imaging and analysis

A compact desktop SEM with EDS analysis allows for the physical and elemental examination of samples, requiring minimal space and no special facilities.

Fully integrated EDS

For precise elemental analysis, the Phenom Perception GSR includes the Element Identification (EID) software, which provides complete control of the built-in EDS detector.

Intuitive Phenom Perception GSR software

Phenom GSR software automates analysis and classification with a four-step wizard for quick, reliable results, and is ASTM E1588 compliant.

Low maintenance

The long-lasting, high-brightness CeB6 source delivers highly stable operation and over 1500 hours of use, ensuring maximum usability and uptime.

Specifications

Sample size
  • Max. 100 mm x 100 mm (up to 30 x 12 mm pin stubs)
  • Max. 40 mm (h)
Software Specifications
  • Compliant with ASTM E1588-17
  • Typically ≥ 98% hit rate on plano artificial GSR sample
  • Supports classification of Pb-free ammunition types
  • Automatic calibrations for reproducible results
Detector types
  • Silicon drift detector (SDD)
  • Thermoelectrically cooled (LN2 free)
Reporting workflow
  • Particle relocation, verification and custom report generation
Imaging module
  • 316(w) x 587(d) x 625(h) mm, 75 kg
Analysis computer
  • Standard workstation including: 24″ widescreen monitor
  • 169(w) x 445(d) x 432(h) mm, 11kg
Power
  • Single phase AC 110 – 240 Volt, 50/60 Hz, 300 W (max.)
