AGS-V Series
Universal / Tensile Testing Machine

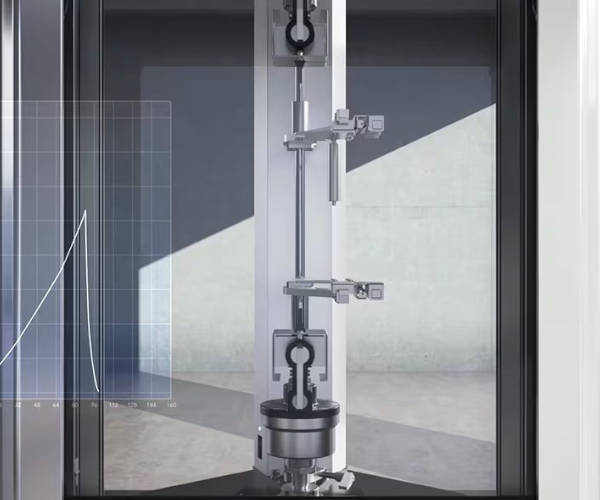

Shimadzu AGS-V Universal Testing Machine: Precision Meets Simplicity
Elevate your materials testing capabilities with the Shimadzu AGS-V Universal Testing Machine. Perfect for research and quality control in automotive, aerospace, electronics, and advanced materials, the AGS-V combines user-friendly operation with advanced automation. The intuitive color LCD touch panel and voice guidance make operation straightforward and safe, while features like automatic calibration and intelligent crosshead positioning ensure reliable results with minimal setup.
With test force accuracy of up to 1/1000 and high-speed testing up to 1500 mm per minute, the AGS-V delivers precise measurements—even for abrupt material failures. Safety is prioritized through a robust cover with an interlock system, dual emergency stops, and self-diagnostics. Compact and versatile, the AGS-V streamlines workflows and enhances productivity, making it the ideal partner for fast-paced manufacturing and research environments.
Elevate your materials testing capabilities with the Shimadzu AGS-V Universal Testing Machine. Perfect for research and quality control in automotive, aerospace, electronics, and advanced materials, the AGS-V combines user-friendly operation with advanced automation. The intuitive color LCD touch panel and voice guidance make operation straightforward and safe, while features like automatic calibration and intelligent crosshead positioning ensure reliable results with minimal setup.
With test force accuracy of up to 1/1000 and high-speed testing up to 1500 mm per minute, the AGS-V delivers precise measurements—even for abrupt material failures. Safety is prioritized through a robust cover with an interlock system, dual emergency stops, and self-diagnostics. Compact and versatile, the AGS-V streamlines workflows and enhances productivity, making it the ideal partner for fast-paced manufacturing and research environments.
REQUEST A QUOTE / ENQUIRY FORM
FEATURES
SPECIFICATION
VIDEOS 1
VIDEOS 2
FEATURES
- Guaranteed test force accuracy of 1/1000 and a test speed range from 0.0005 to 1500 mm/min.
- Enhanced sampling rate of 0.2 ms for precise capture of rapid or minute changes.
- Intuitive color LCD touch panel and handheld controller for easy test setup and operation without a PC.
- Voice Guidance – Supports Japanese, English, and Chinese for safer and more intuitive operation.
- Automatically moves to preset positions and stops to prevent jig collisions, enhancing safety and convenience.
- Function to eliminate initial load with a single touch, ensuring accurate data and protecting samples.
- Raised-edge table at the front for convenient placement of tools and specimens, improving workflow efficiency.
- Anti-scattering protection cover with interlock and free-stop function for operator safety.
- Monitors machine status and notifies operators of issues or maintenance needs, reducing downtime.
- Supports additional accessories and extensometers for a wide range of measurements.
- Crosshead returns to start position at 1650 mm/min, reducing test cycle time.
- Test force is automatically calibrated at start-up for reliable results
SPECIFICATION
| Model | AGS-1NVD/2NVD/5NVD (Load Capacity – 1N / 2N / 5N) AGS-10NVD/20NVD/50NVD (Load Capacity – 10N / 20N / 50N) AGS-100NVD (Load Capacity – 100N) AGS-500NVD (Load Capacity – 500N) AGX-1kNVD (Load Capacity – 1kN) AGX-5kNVD (Load Capacity – 5kN) AGX-10kNVD (Load Capacity – 10kN) |
| Loading Method | Direct high-precision contant-speed strain control method using precision ball screw drive with no backlash |
| Test Force Accuracy (High-Precision Type 1/500) |
Within ±0.5 % of the displayed test force (within the range of 1/1 to 1/500 of the rated load cell capacity) JIS B7721 class 0.5, EN 10002-2 grade 0.5, ISO 7500-1 class 0.5, BS 1610 class 0.5, complies with ASTM E4 *1) |
| Test Force Accuracy (Wide-Range Type 1/1000) |
Within ±1 % of the displayed test force (within the range of 1/1 to 1/1000 of the rated load cell capacity) JIS B7721 class 1, EN 10002-2 grade 1, ISO 7500-1 class 1, BS 1610 class 1, complies with ASTM E4 *1) |
| Test Force Accuracy (Standard Type 1/500) |
Within ±1 % of the displayed test force (within the range of 1/1 to 1/500 of the rated load cell capacity) JIS B7721 class 1, EN 10002-2 grade 1, ISO 7500-1 class 1, BS 1610 class 1, complies with ASTM E4 *1) |
| Test Force Calibration | Select from automatic test force calibration, tension, or tension and compression. |
| Crosshead Speed Range | 0.0005 to 1,500 mm/min (can be set as desired, not in steps) |
| Maximun Return Speed | 1,650 mm/min |
| Crosshead Speed & Allowable Test Force | Up to the load cell capacity for all speeds |
| Effective Test Width | 425 mm |
| Crosshead Position Detection (Display) | Digital (0.001) |
| Sampling Rate | Max 0.2 ms |
