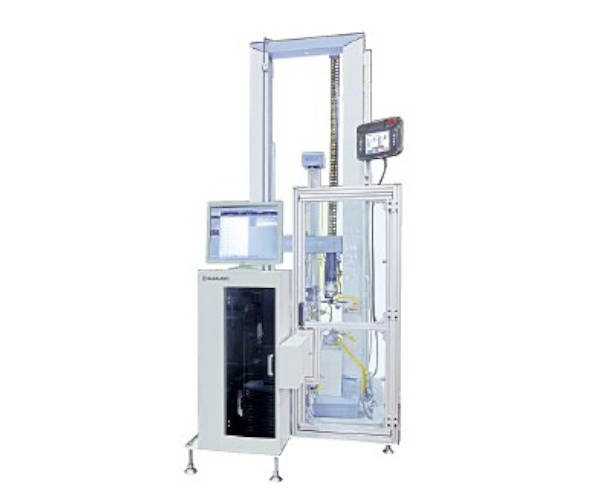

Fully Automatic Rubber Tensile Testing System
The Shimadzu Fully-Automatic Tensile Testing System for Rubber is a compact, automated system that integrates all the functions required for quality control of rubber. The system can automatically measure specimen dimensions, supply specimens to the testing machine, fix chucks, measure extension between standard lines, and process data. It can also be used for continuous testing 24 hours a day, 7 days a week, which helps save labor costs. This versatile and efficient tool can help manufacturers improve the quality of their rubber products.
REQUEST A QUOTE / ENQUIRY FORM
FEATURES
SPECIFICATION
VIDEO
FEATURES
- The system complies with JIS K6301 and K6251 standards for rubber and equipped with 100 % elongation compatible extensometer.
- With the pallet system used for storing specimens (max. 120 specimens), it can realize Automatic 3-point thickness measurement matched to test material.
- By means of JIS-compliant dedicated data processing software, an operator friendly testing procedure can be achieved.
SPECIFICATION
| Applicable specimen | JIS K6251 No.3 and No.5: For tensile testing JIS K6252 Crescent type and angle type (optional) |
| Load Capacity | 1 kN |
| Test speed | 5 to 500 mm/min |
| Grip, bending jig | 1 kN pneumatic eccentric roller type grip |
| Gauge length extensometer | Contact type extensometer (GL20, 25 mm) |
| Specimen size measuring device | Linear gauge type |
| Specimen storage unit | Pallet type |
| Data processing unit | JIS K6250, 6251, 6252 (optional) compliant |
