EZ-Test Series
Universal / Tensile Testing Machine

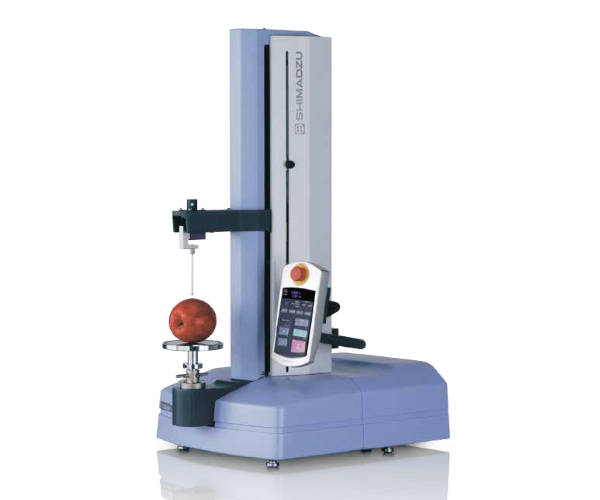

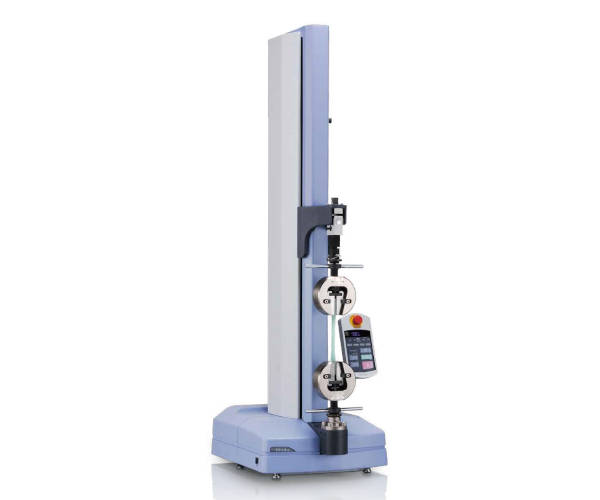

Shimadzu EZ Tester: Compact, High-Precision Tabletop Universal Testing Machine
The Shimadzu EZ Tester series is designed to deliver high-precision material testing in a compact, easy-to-use format. These tabletop universal testing machines are ideal for a wide range of applications, including the evaluation of food textures, pharmaceuticals, medical devices, plastics, rubbers, and more. Featuring advanced load cell technology with up to 5 kN capacity, the EZ Tester guarantees accurate test force measurements—ensuring reliable results for quality control, research, and product development.
With three versatile models and a selection of load cells, the EZ Tester can be customized to meet specific testing needs, supporting up to 32 different configurations. Its user-friendly interface, adjustable controller, and intuitive software—TRAPEZIUM X—make operation straightforward, while the open table design provides ample workspace and easy access for sample handling. Whether you require tensile, compression, or bend testing, the Shimadzu EZ Tester offers speed, flexibility, and precision in a compact footprint, making it a smart choice for modern laboratories and production environments.
The Shimadzu EZ Tester series is designed to deliver high-precision material testing in a compact, easy-to-use format. These tabletop universal testing machines are ideal for a wide range of applications, including the evaluation of food textures, pharmaceuticals, medical devices, plastics, rubbers, and more. Featuring advanced load cell technology with up to 5 kN capacity, the EZ Tester guarantees accurate test force measurements—ensuring reliable results for quality control, research, and product development.
With three versatile models and a selection of load cells, the EZ Tester can be customized to meet specific testing needs, supporting up to 32 different configurations. Its user-friendly interface, adjustable controller, and intuitive software—TRAPEZIUM X—make operation straightforward, while the open table design provides ample workspace and easy access for sample handling. Whether you require tensile, compression, or bend testing, the Shimadzu EZ Tester offers speed, flexibility, and precision in a compact footprint, making it a smart choice for modern laboratories and production environments.
REQUEST A QUOTE / ENQUIRY FORM
FEATURES
SPECIFICATION
VIDEO
FEATURES
- Easily fits on table tops and features an open table design for ample workspace and easy sample handling.
- Offers test force measurement accuracy up to ±0.5% of indicated value (high-precision type) or ±1% (standard-precision type), with load capacities up to 5 kN.
- Three main models—EZ-SX (short), EZ-LX (long-stroke), and EZ-LX HS (long-stroke, high-speed)—suit a variety of testing needs.
- Crosshead speed ranges from 0.001 to 1000 mm/min (EZ-SX, EZ-LX) or up to 2000 mm/min (EZ-LX HS)
- Maximum return speeds up to 3000 mm/min, reducing time between tests.
- Up to 920 mm stroke for testing materials with large elongation.
- Manual controller can be positioned and angled for user comfort.
- Test force calibration is performed automatically using a calibration cable.
- Compatible with TRAPEZIUM X software for intuitive operation and data management.
- Supports a wide range of specialized jigs for different applications (food, pharmaceuticals, plastics, rubbers, etc.).
- Meets JIS B7721, ISO 7500-1, EN 10002-2, and ASTM E4 standards.
SPECIFICATION
| EZ-SX | EZ-LX | EZ-LX HS | |
|---|---|---|---|
| Tester Load Capacity | Max. 500 N | Max. 5 kN | Max. 2 kN |
| Crosshead Speed Range | 0.001 to 1000 mm/min | 0.001 to 2000 mm/min | |
| Maximum Return Speed | 1500 mm/min | 3000 mm/min | |
| Test Force Measurement | High-Precision Type | ±0.5 % of indicated value (within 1/500 to 1/1 of load cell rated capacity) Conforms to JIS B 7721 class 0.5, ISO 7500-1 class 0.5, EN 10002-2 grade 0.5, and ASTM E4. | |
| Standard-Precision Type | ±1 % of indicated value (within 1/500 to 1/1 of load cell rated capacity) Conforms to JIS B 7721 class 1, ISO 7500-1 class 1, EN 10002-2 grade 1, and ASTM E4. | ||
| Test Force Calibration | Automatic calibration using calibration cable | ||
