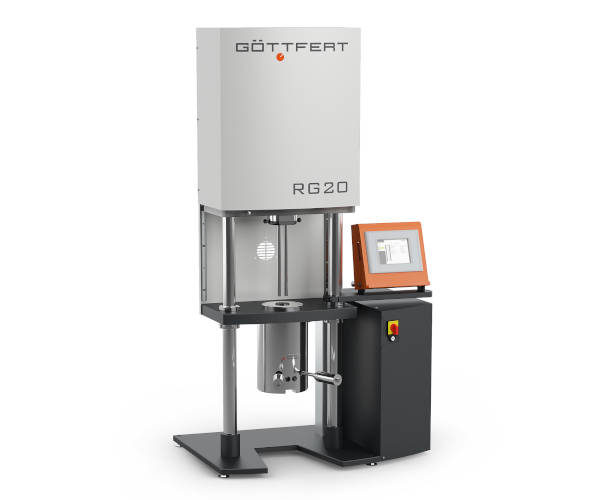

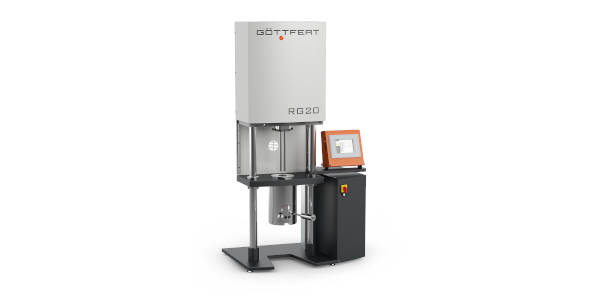

Rheograph 20
Rheograph 20 is a high developed instrument especially for entry-level model user in the field of viscosity measurements. Additional modular based add-ons enable an extra value for determination of further material specific characteristics. The RG20 is working with a measurement force of 20kN. Besides the determination of viscosity, the Rheograph 20 is able to access the GÖTTFERT platform for extended material
characterization with the following features:
- PVT (Pressure, Volume, Temperature)
- Elongation (Haul-Off, Rheotens)
- Contifeed
- Shark-Skin
- Thermal Conductivity
- Counter-Pressure-Chamber
- Die Swell Measurement
REQUEST A QUOTE
- 20 kN test force and a dynamic speed range from 0.0001 mm/s (0.006 mm/min) – 30 mm/s (2400mm/min)
- Single or twin barrel system in 9.55, 12, 15 or 20 mm design
- Temperature control range up to 400°C (500°C optional), display resolution 0.01°C
- High temperature stability and extremely low deviation over the whole test barrel length as well as in the die area (norm and standard overmatching)
- Automatic pressure transducer detection and identifying („Plug / Test“)
- Adaptive signal resolution of only 0.005% from the pressure transducer range
