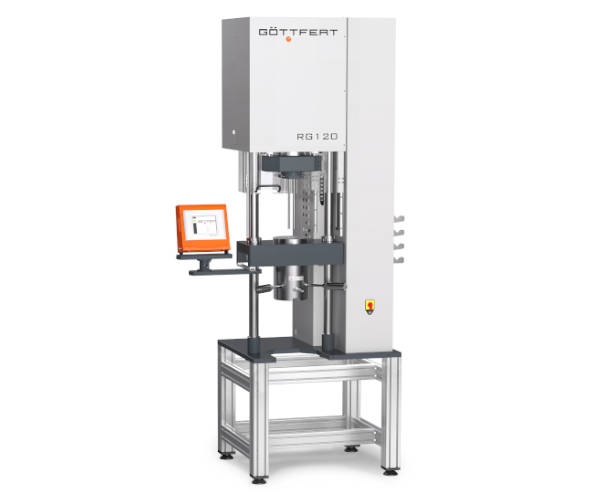

Rheograph 75/120
The Rheograph family with different measurement force 75kN and 120kN are completed new development. Additional modular based add-ons enable an extra value for determination of further material specific characteristics.
It is able to access the GÖTTFERT platform for extended material characterization with features as follows:
- PVT (Pressure, Volume, Temperature)
- Elongation (Haul-Off, Rheotens)
- Contifeed
- Shark-Skin
- Thermal Conductivity
- Counter-Pressure-Chamber
- Die Swell Measurement
REQUEST A QUOTE
- Single and twin barrel system, 12, 15, 20 or 30 mm design
- Speed range 0,00004 - 40 mm/sec (= 1:1.000.000)
- Compact service-friendly construction with easy accessible components
- Temperature control range up to 400°C (500°C optional), display resolution 0.01°C
- Automatic pressure transducer detection and identifying („Plug / Test“)
- Adaptive signal resolution of only 0.005% from the pressure transducer range
